- Brand Name: ACEHE
- Origin: CN(Origin)
- Focus Type: Normal Lens
- Type: Fixed Focus Lens
- Certification: NONE
- Package: Yes
- Caliber: 1/3 inch Aptina MT9M034
- Weight: 316g
- Model Number: T7M
Features:
1.Professional :This camera is professional for planetary Astronomical.
2.Durable Quality: Made of alumium alloy , durable and for long time use.
3.Easy to carry :Super light weigt and small in size , so you can carry out easity .
4.Hight resolution : Effective pixels quantity: 1280*960
5. Software compatibility support: Windows98, WindowsME, Windows2000, WindowsXP, win7, win8, win10 and Mac OS, Linux.
Description

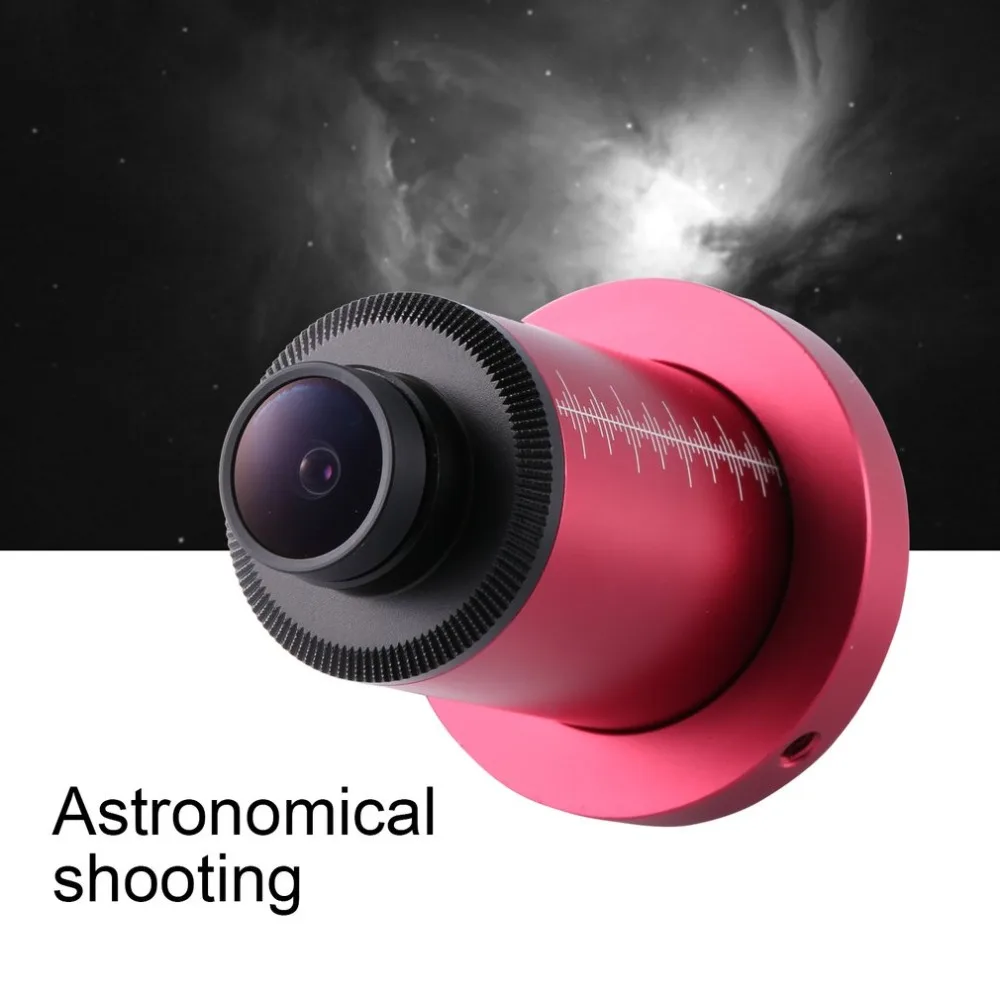

It is both a high frame rate planetary camera and an excellent guide camera. It can also be used for deep space shooting. Compatible with ASCOM protocol and WDM framework, it is basically universal for astronomical shooting software; 12-bit ADC sampling, lossless output , Support RAW, FITS, AVI and other formats, leaving room for post-processing of astronomical shooting.
Specifications:

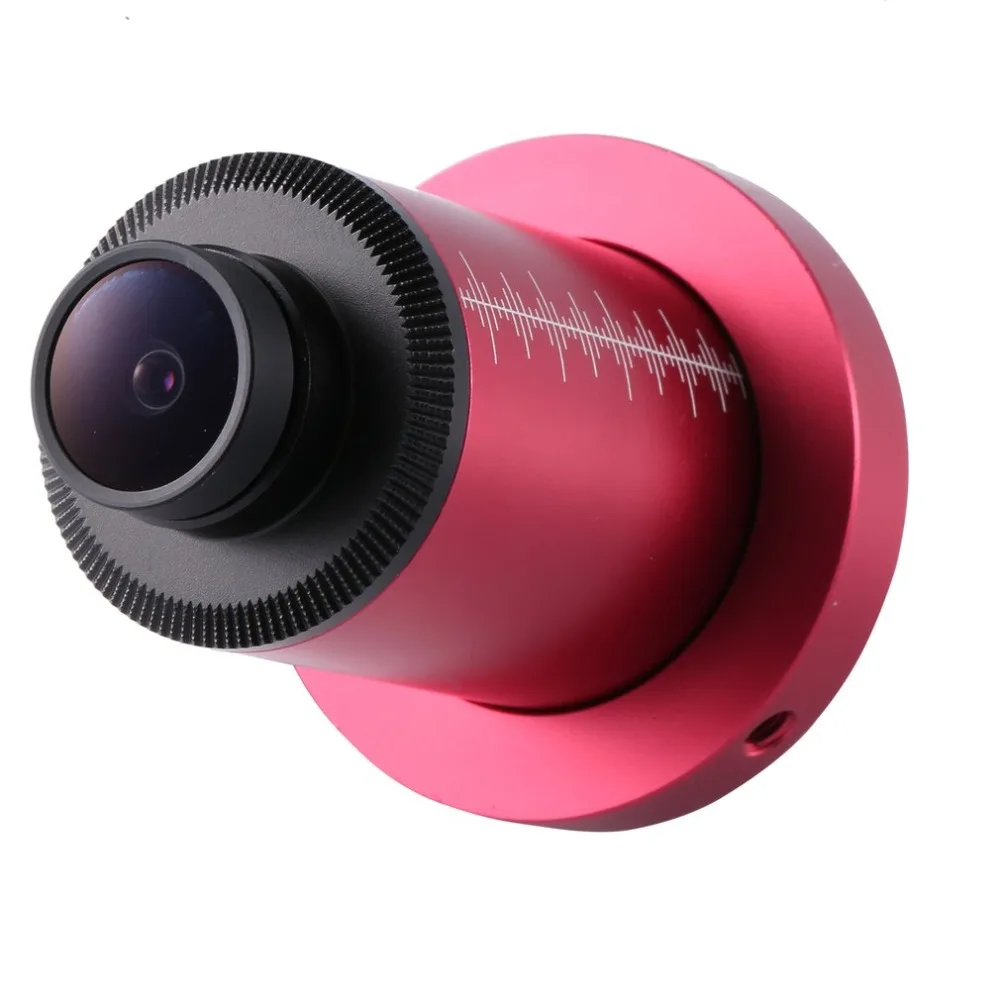

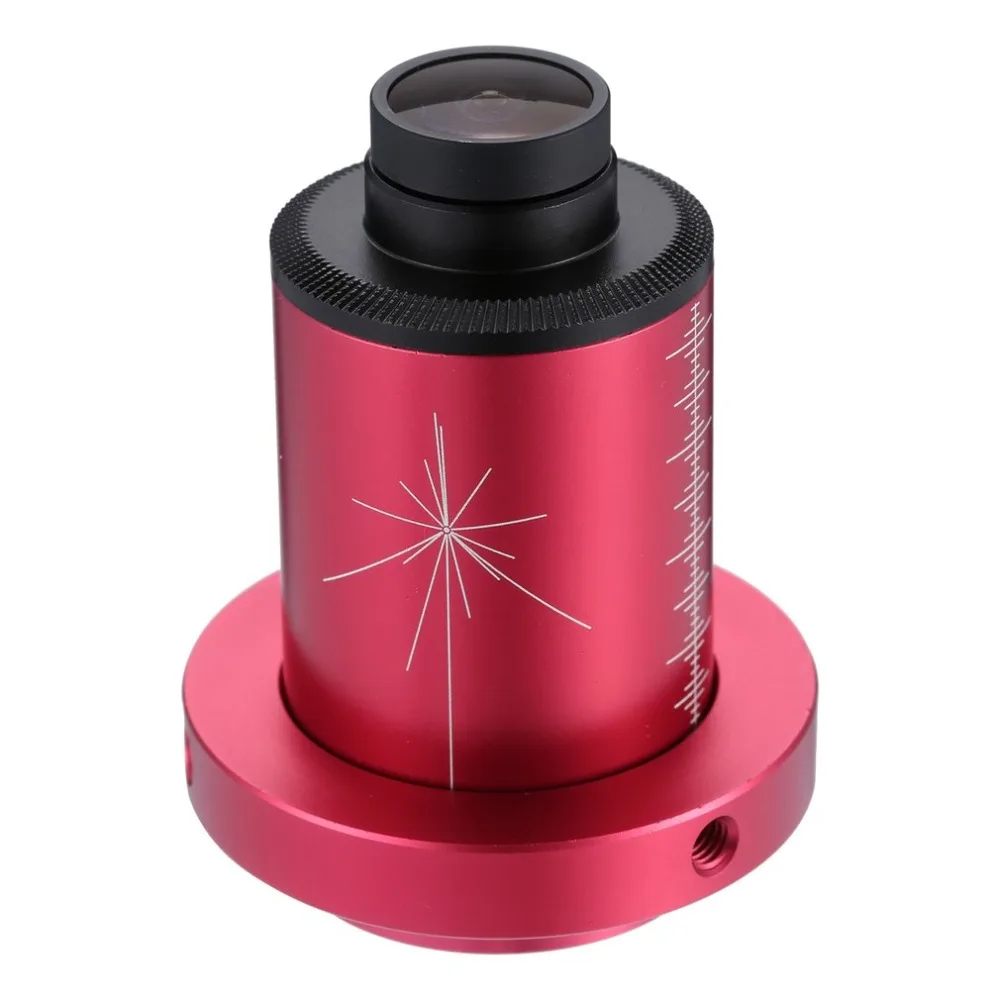

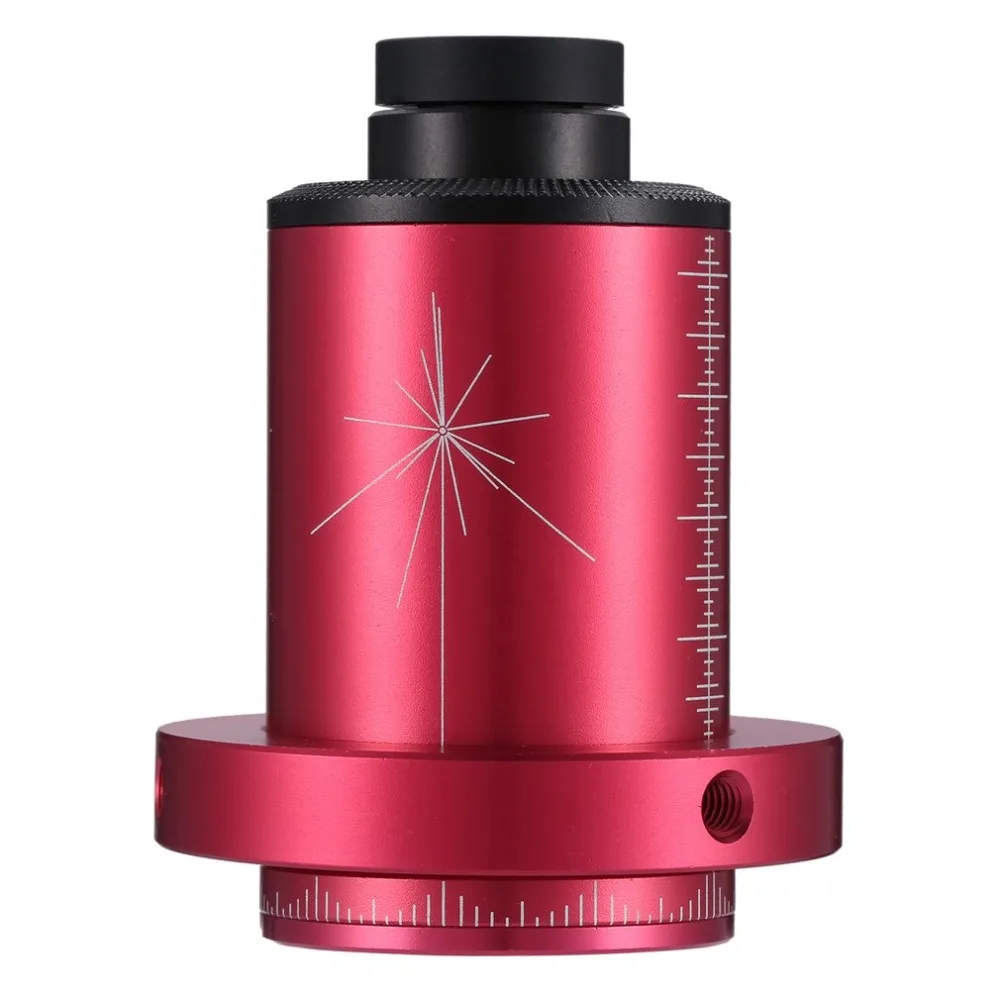

Model:T7M (Mono Camera)
Sensor size: 1/3 inch Aptina MT9M034
Output format: RGB24 I420

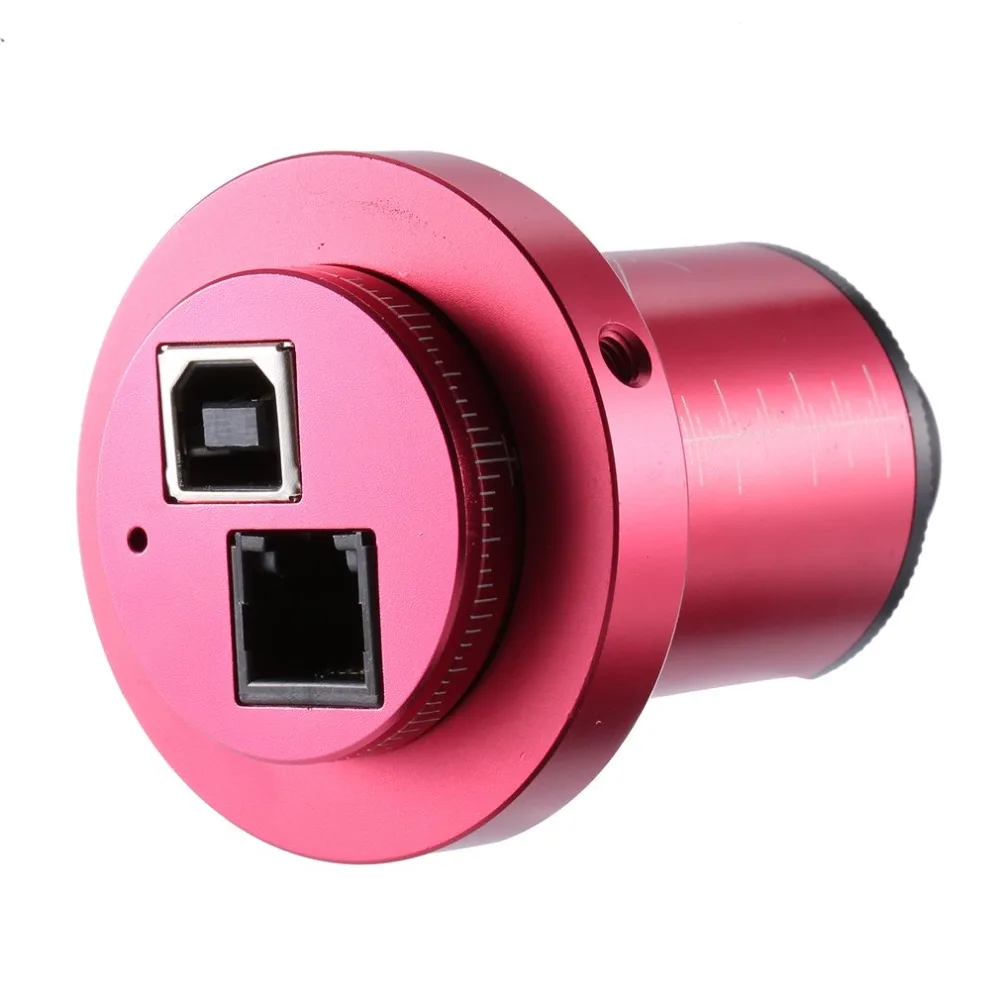

Output interface: USB2.0
Number of output bits: 12 bits (12-bit ADC sampling)
Longest exposure: 999s
Maximum frame rate:
1280X960@35FPS 1280X720@46FPS 1280X600@55FPS 1280X400@80FPS 960X960@46FPS
1024X768@54FPS 1024X600@69FPS 1024X400@101FPS 800X800@66FPS 800X640@82FPS
800X512@102FPS 800X400@108FPS 800X320@158FPS 640X560@98FPS 640X480@113FPS
512X440@123FPS 512X400@135FPS 480X320@165FPS 320X240@215FPS
2X2Bin: 640X480@35FPS5FPS

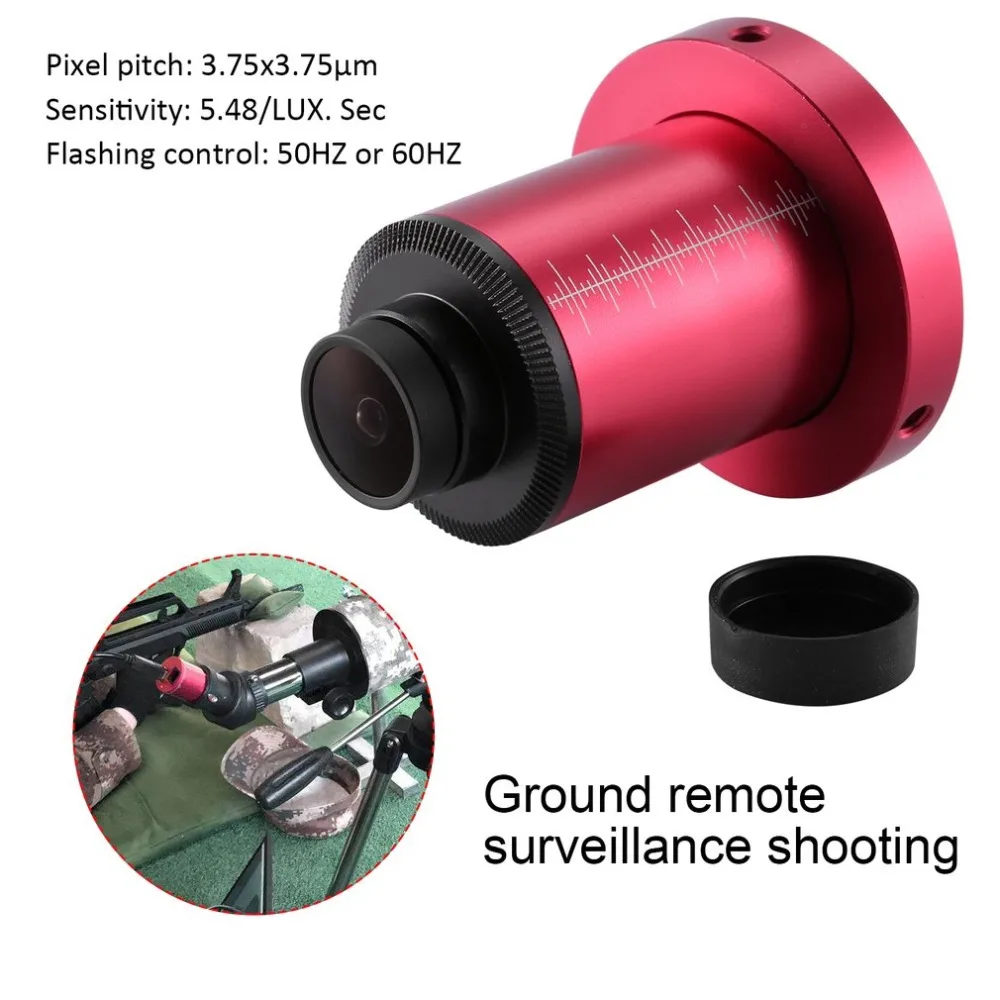

Pixel pitch: 3.75x3.75μm
Sensitivity: 5.48/LUX. Sec
Flashing control: 50HZ or 60HZ
Software compatibility support: Windows98, WindowsME, Windows2000, WindowsXP, win7, win8, win10, Mac OS, Linux.
Single frame capture storage format: BMP, FITS, RAW
Dynamic capture storage format: AVI
Working temperature: -5°- 60°
Storage temperature: -20°- 60°
Working humidity: 20% RH-80% RH
Storage humidity: 20% RH-95% RH
Power consumption: < 0.5W

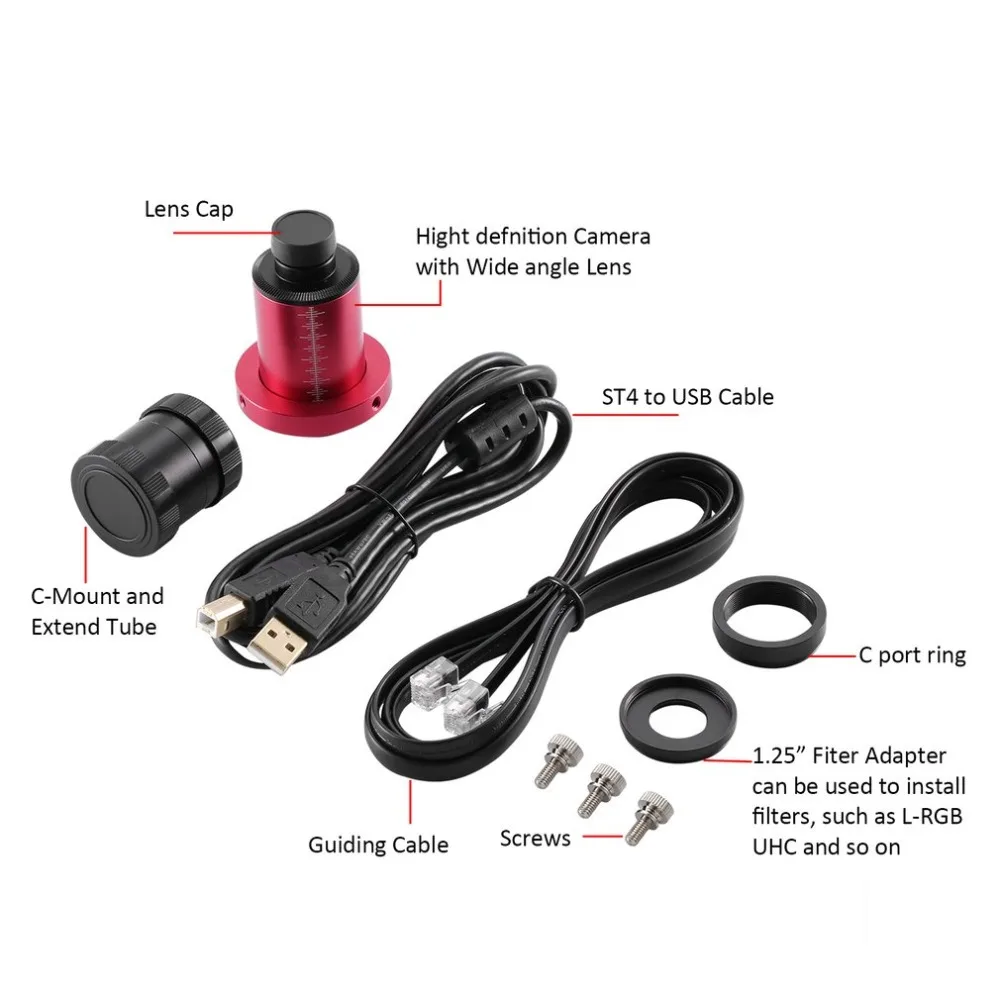

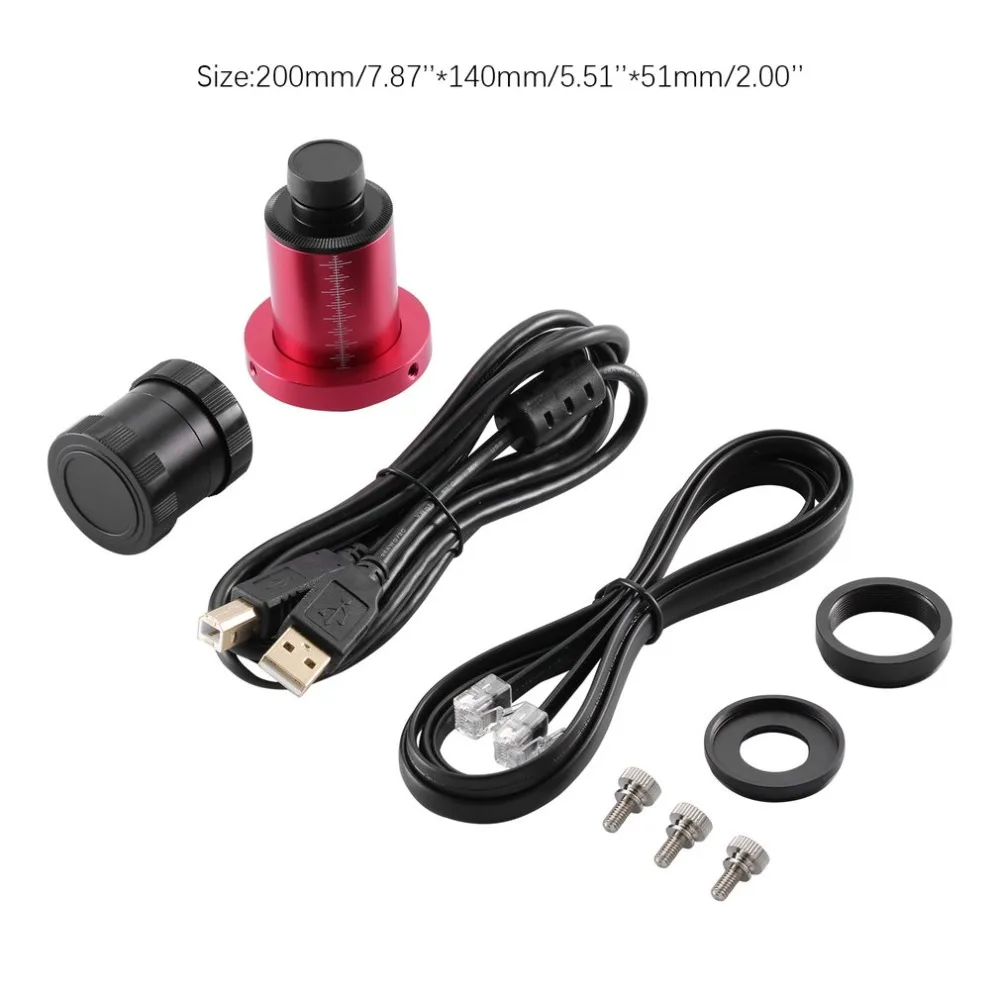

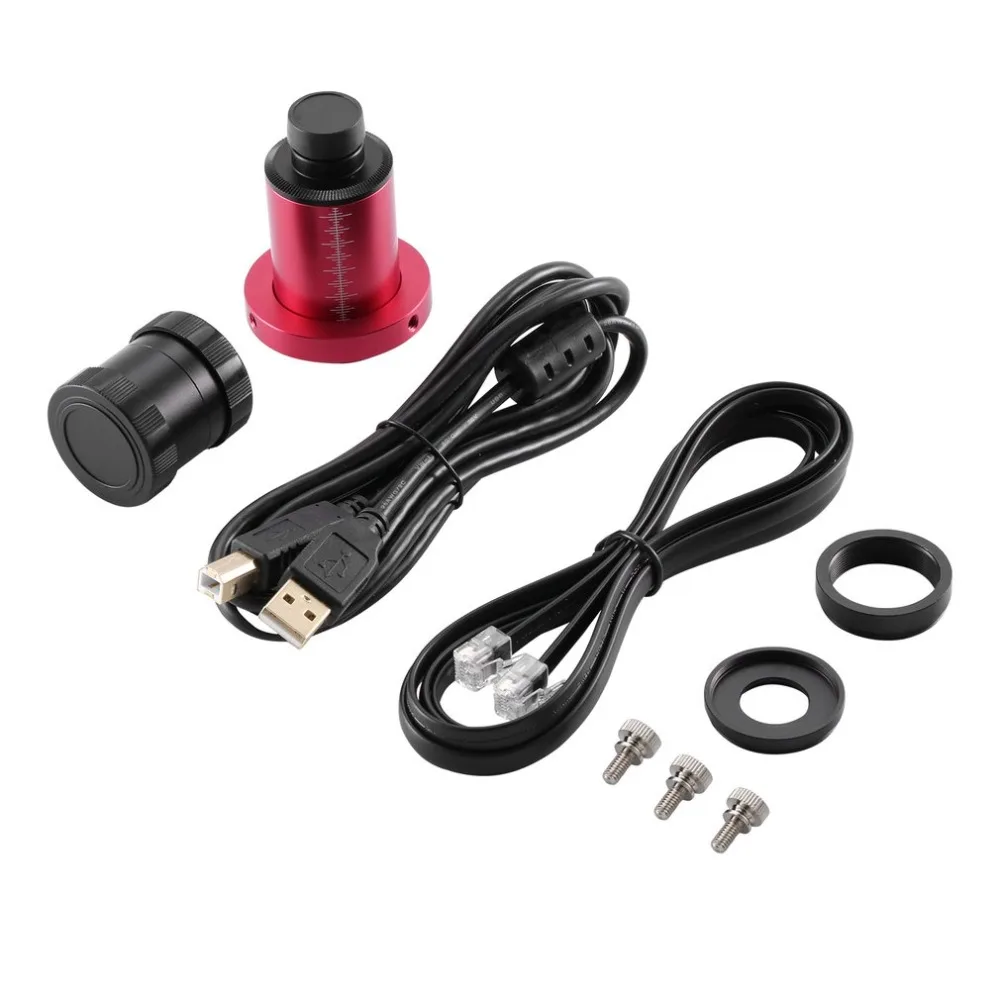

Package include:

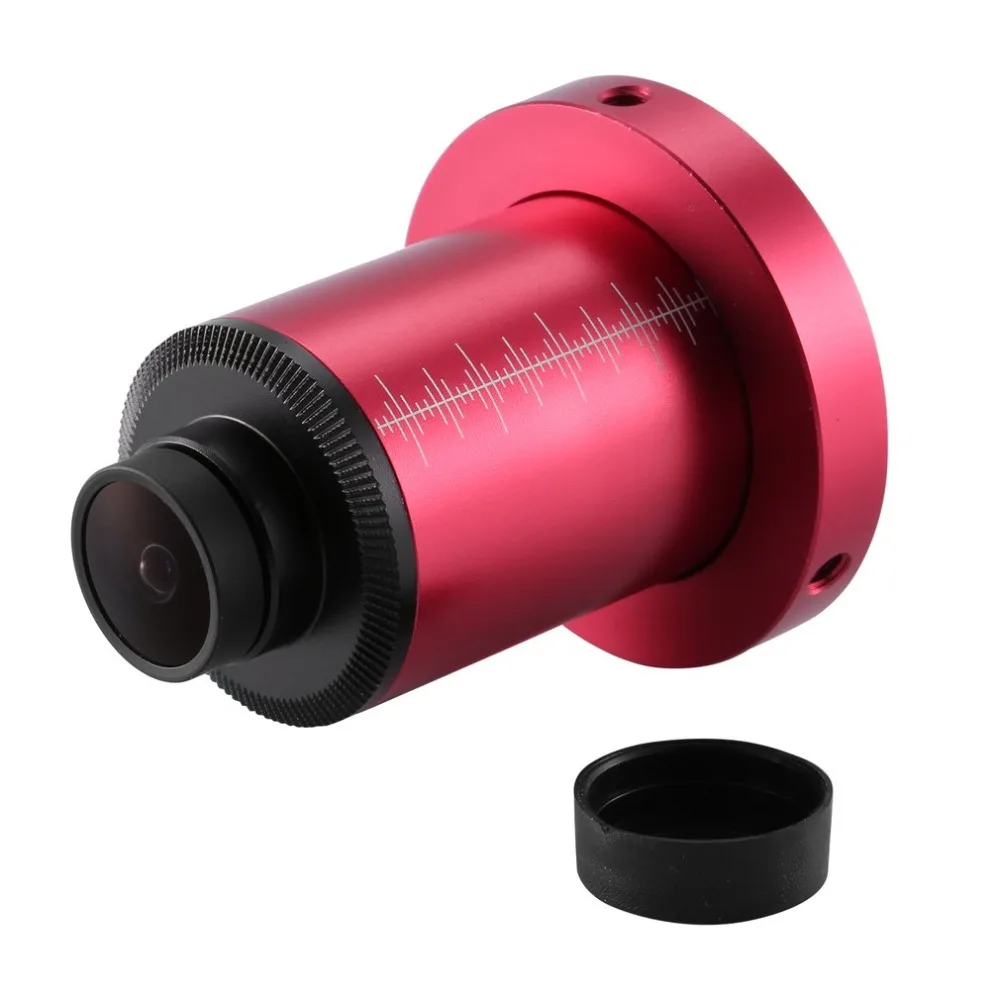

1 x High Speed Camera
1 x Location Ring with 2 screw

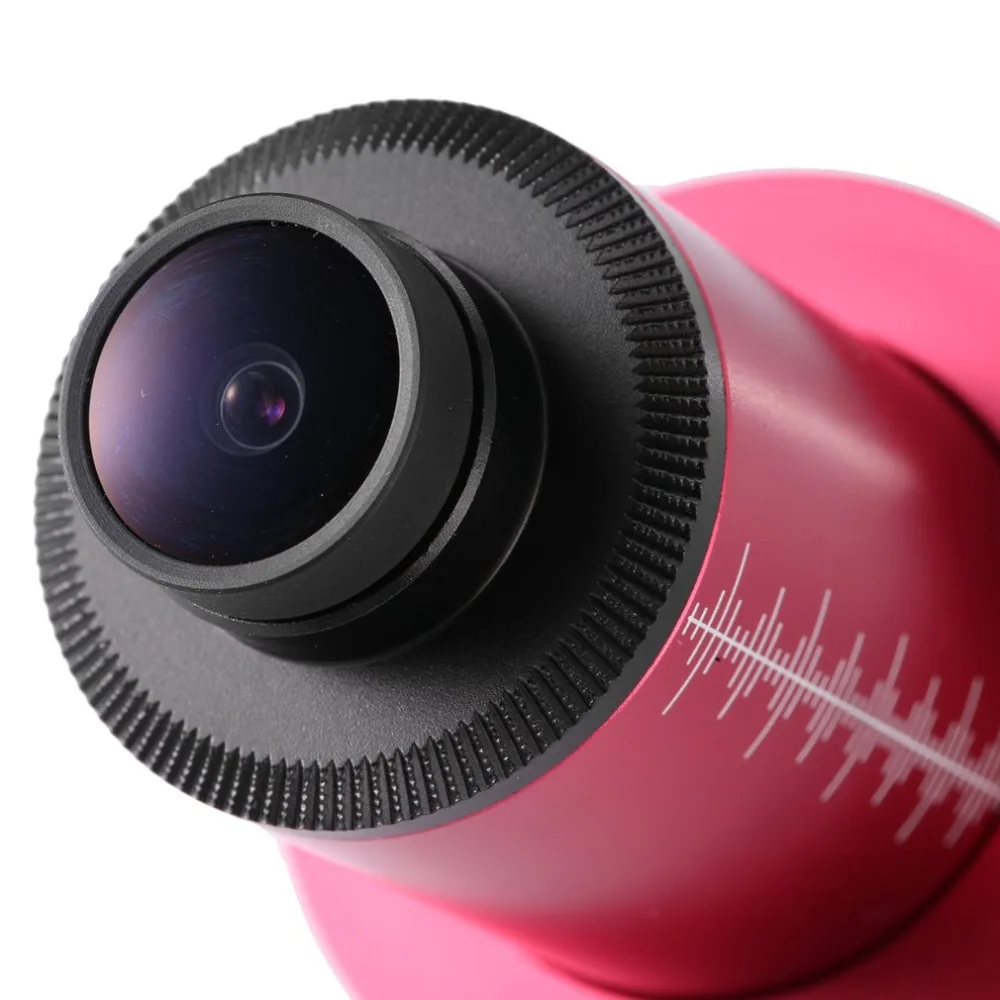

1 x 180-Degree Wide-angle lens with Dust Cover
1 x C-mount with Extend Tube
1 x 1.25" filter Adapter

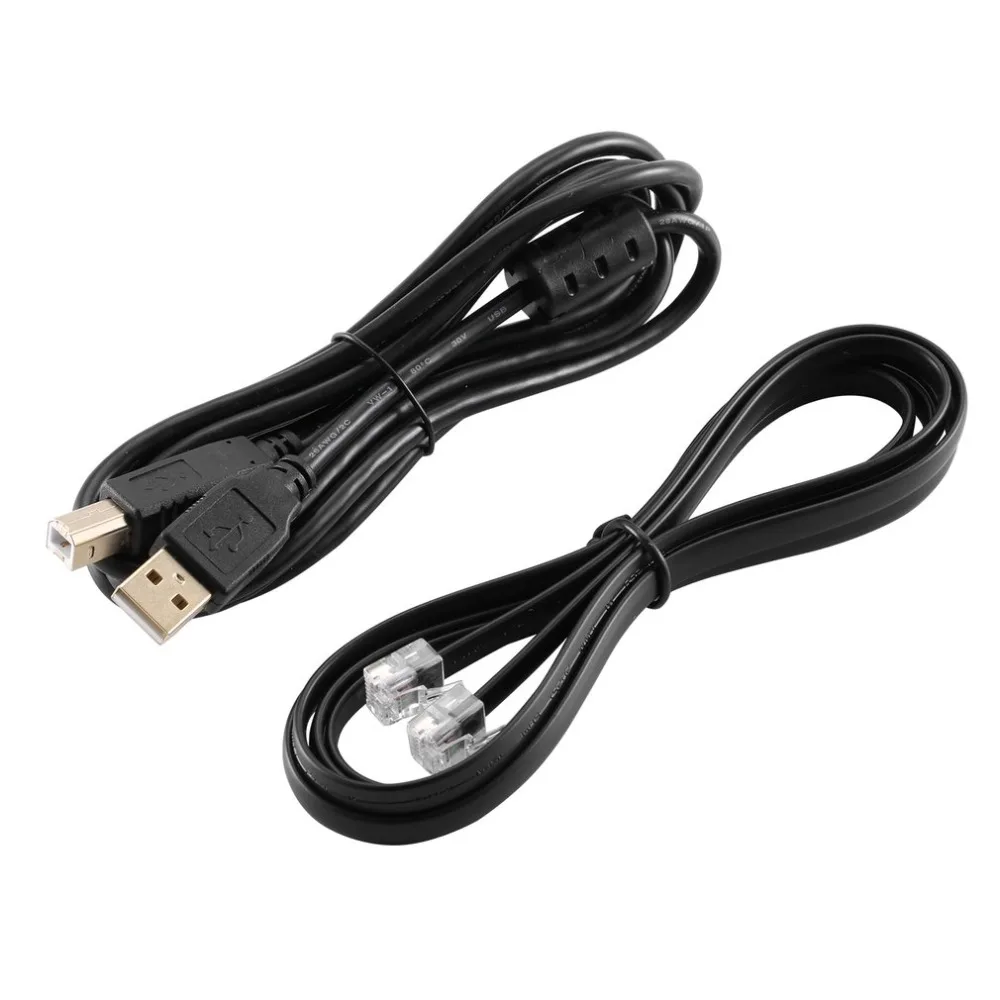

1 x ST4 to USB Cable
1 x Guide Cable
1 x Astrophotography Software
Notes:
T7C is a Color Camera,T7M is a Mono Camera(Black and White)
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation. Thanks!
